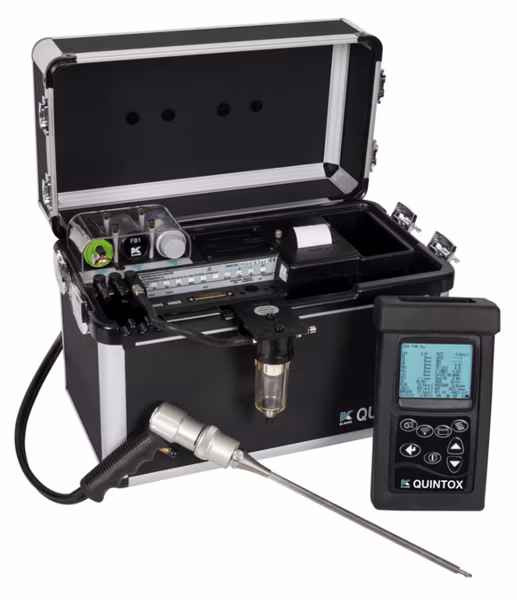

KANE9206 QUINTOX

• Test boilers with stack draught over 50 mbar with high suction pump
• Long term unattended testing with 64,000 test memory, remote handset & large graphic display
• Unique 5 gas sensor technology
  • O2 0-21%
  • CO 0-10,000ppm H2 compensated
  • CO 0-10%
  • HC 0-5000ppm
  • CO2 0-20%
• Option for 4 toxic sensors
• Perform unattended boiler commissioning tests with automatic fresh air purge and optional WTS9206P automatic water trap
• Perform MCERTS (pending) compatible emissions tests with optional gas conditioning unit, heated line & probe
• Perform cold condition tests with optional KHSA sensor heater

Features

• Large Graphic Display with 15 lines of text & data
• Optional Gas Conditioning Unit for accurate NO2 & SO2 measurement

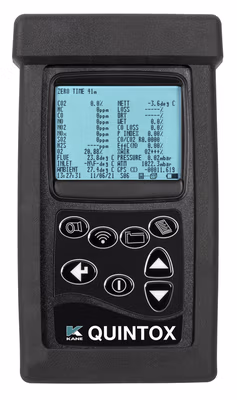

• Wireless & cable link between Analyser & Handset for remote monitoring
• Wireless & USB link to PC
  • Use KANE LIVE software for "real time" monitoring or test results transfer to a PC, tablet or smartphone
• Large internal memory to store up to 64,000 tests
• Main Purge
  • Zero & refresh sensors without removing probe from flue
  • Automatic sensor 'over range' protection
• Integral printer & option to use KANE-IRP3
• Heavy duty case protects analyser & handset - total weight: 9.5kg
• Lifetime warranty under KANE CARE Service & Recertification - our promise to never let you down or your money back

Sensor options - up to 4

• KH2S/Q H2S 0-1000ppm sensor*
• KNO1H/Q NO 0-5000ppm sensor
• KNO2/Q NO2 0-1000ppm sensor*
• KSO2H/Q SO2 0-5000ppm sensor*

Probe & accessory options

• CHSLP6 1m high temperature PTFE lined smoke probe with removable shaft & 4m neoprene hose
• KMCE10 10m hose & thermocouple extension
• KHSA Toxic Sensors Heater
• WTS9206P Automatic emptying water trap - not needed with KANE-GCU9206
• KMDM* Gas conditioning unit & Automatic water trap
• KMHL3000* 3m Heated Line to 120°C
• KMHP1200* 1m Heated Probe to 120°C

Marine Engine Emissions Testing

• Use all * items to measure NO2, SO2 & H2S - specify 110 / 230 voltage
